How to build the 1m PET windturbine - From Waste To Wind

Shopping list

First we need to gather everything. All parts and materials have been chosen so that they can be purchased everyware.

M132 6206 2rs deep groove ball bearing (2x)

M132 6206 2rs deep groove ball bearing (2x)

Neodymium magnets (10 x 10 x 10 mm / N42) (12x)

Neodymium magnets (10 x 10 x 10 mm / N42) (12x)

10mm threaded rod (1x)

10mm threaded rod (1x)

All build instructions can be found on the Hackaday.io hub: https://hackaday.io/project/174283/logs

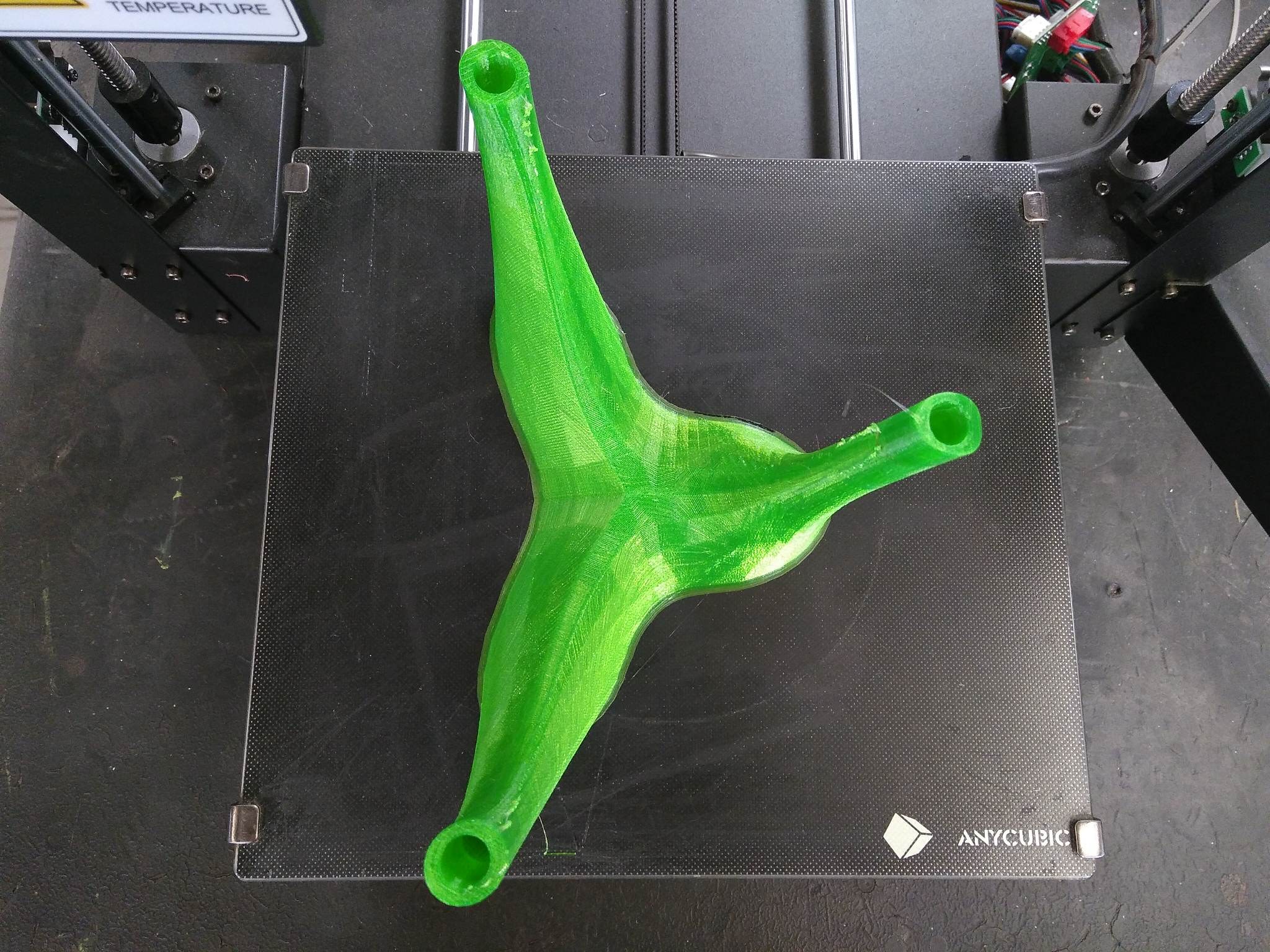

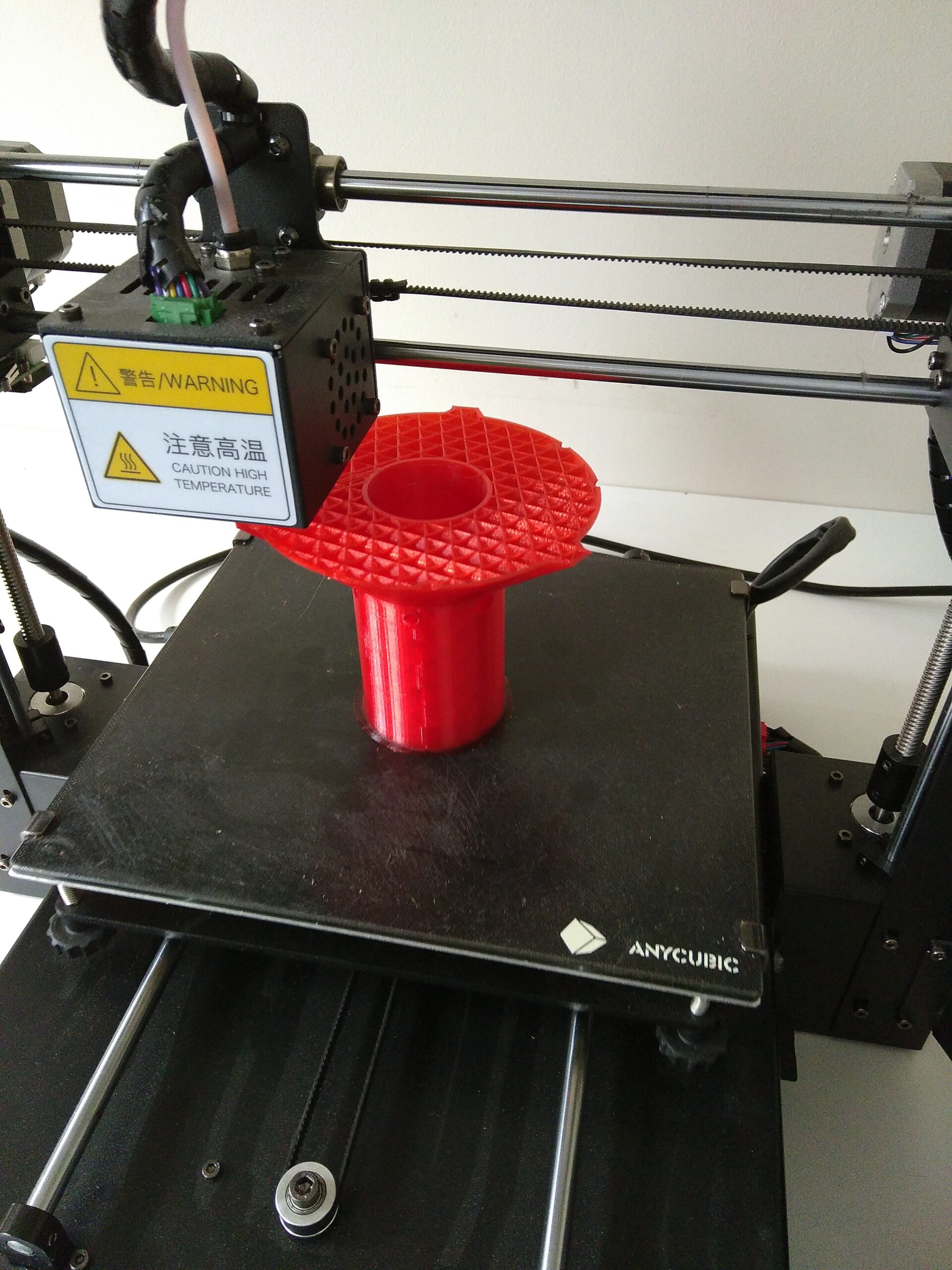

First print the piece for the axle

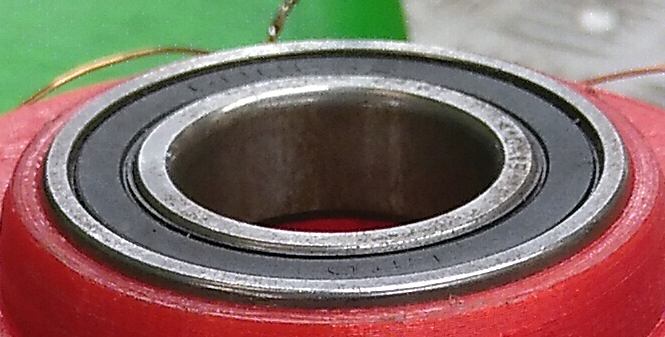

Push or hammer the bearing in.

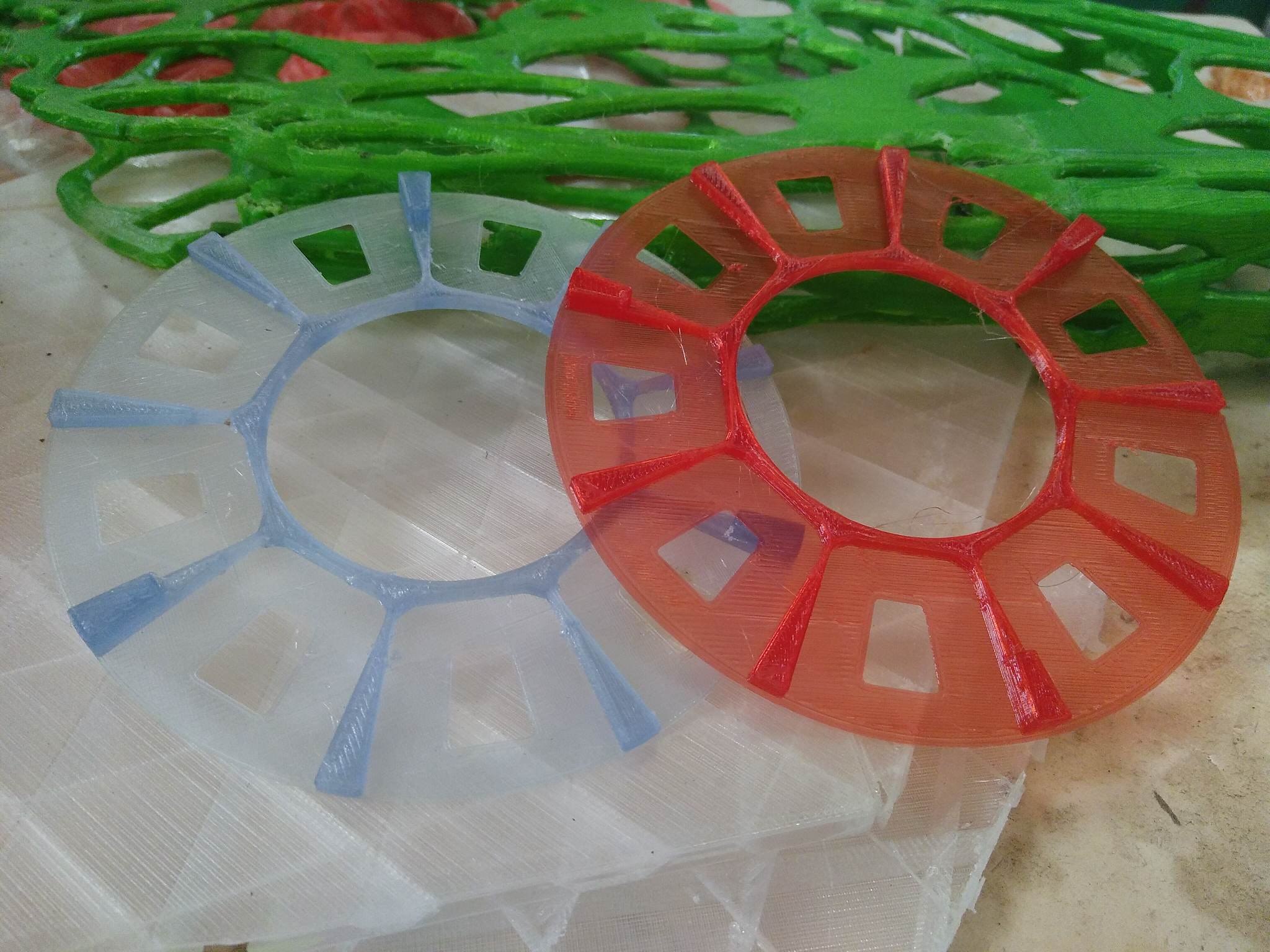

Print the holders for the coil that will make up the stator

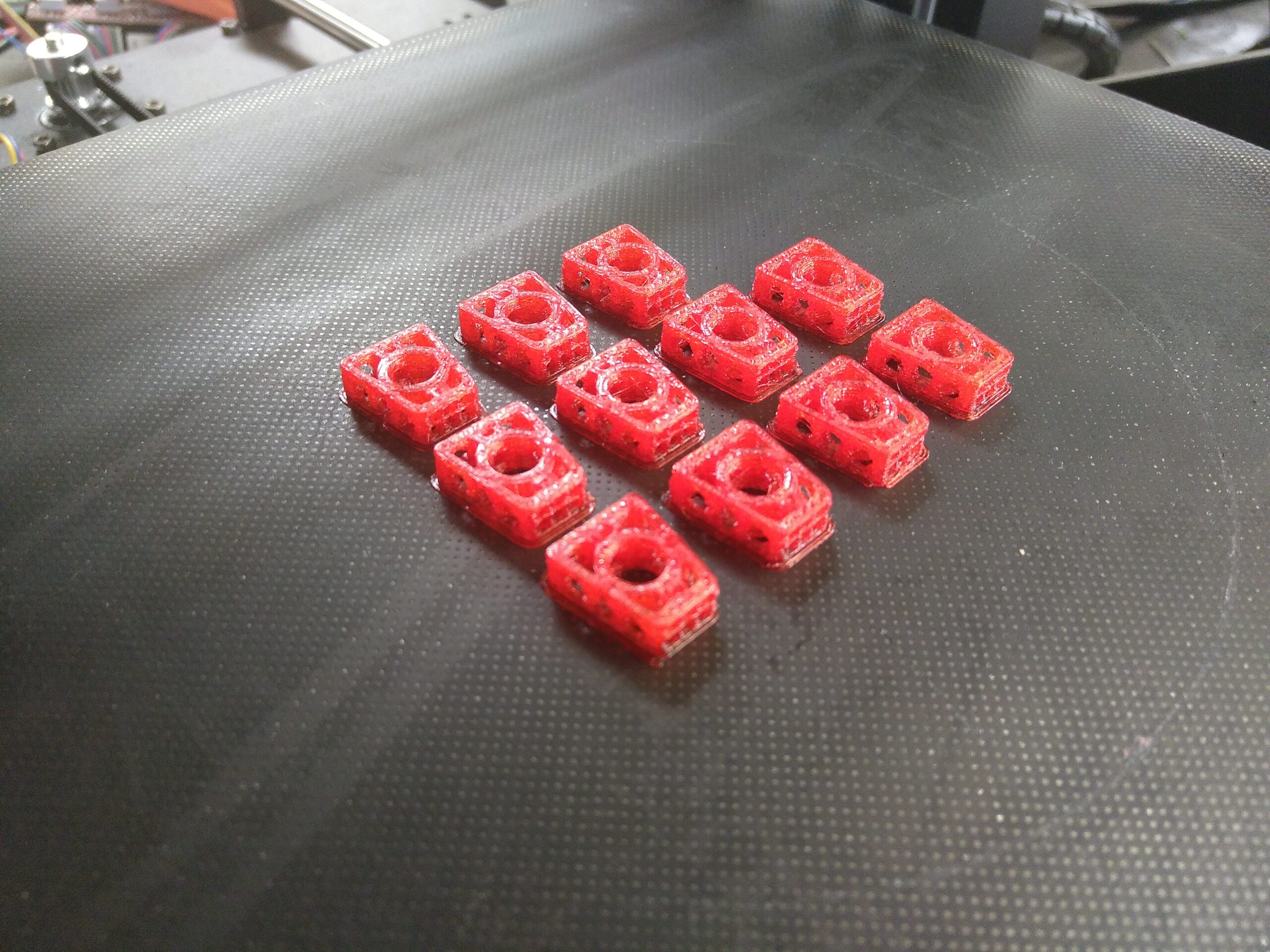

Print the center parts for the coils

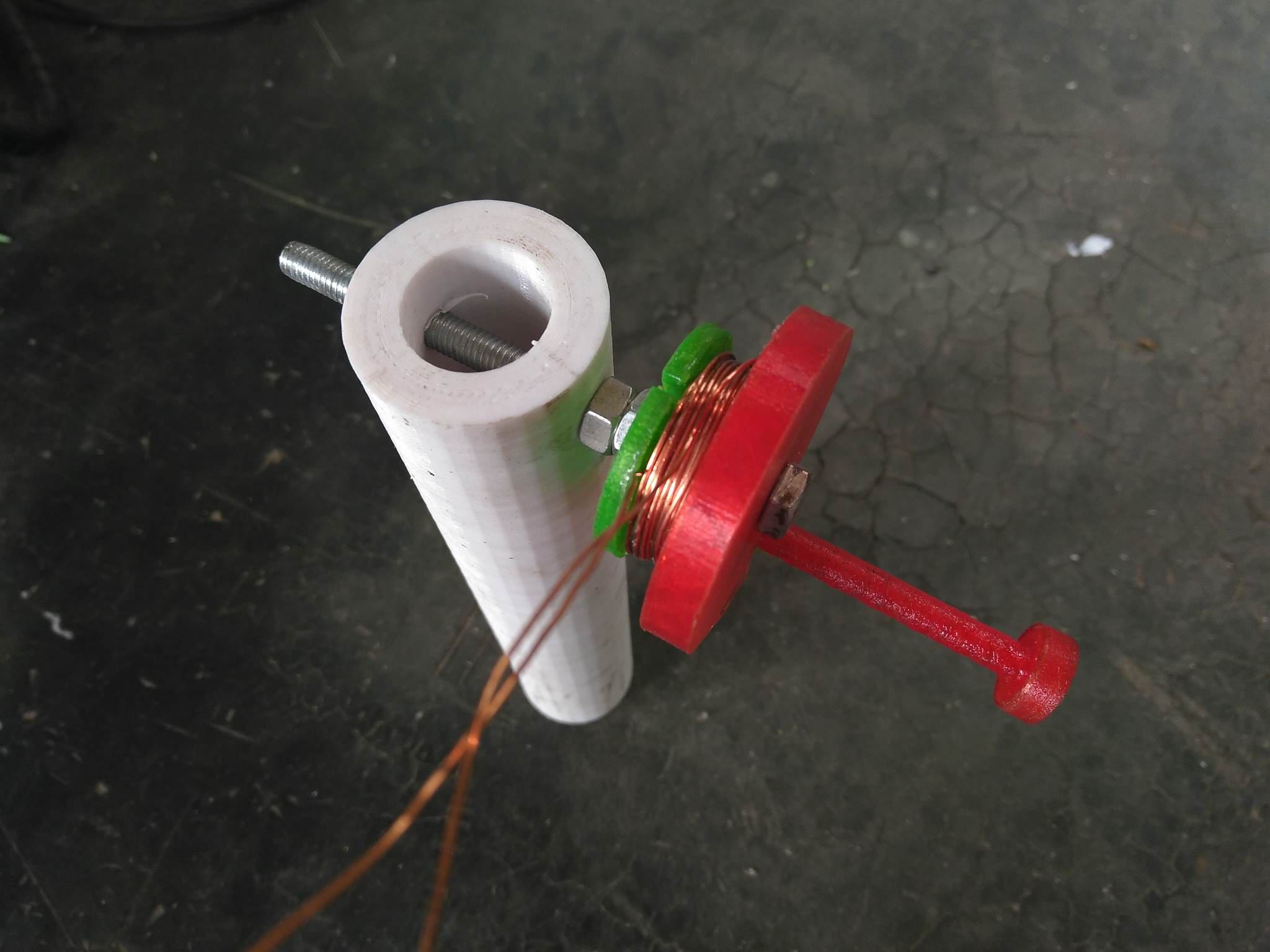

Assemble the coil winder like this and wind 12 coils with 90 turns

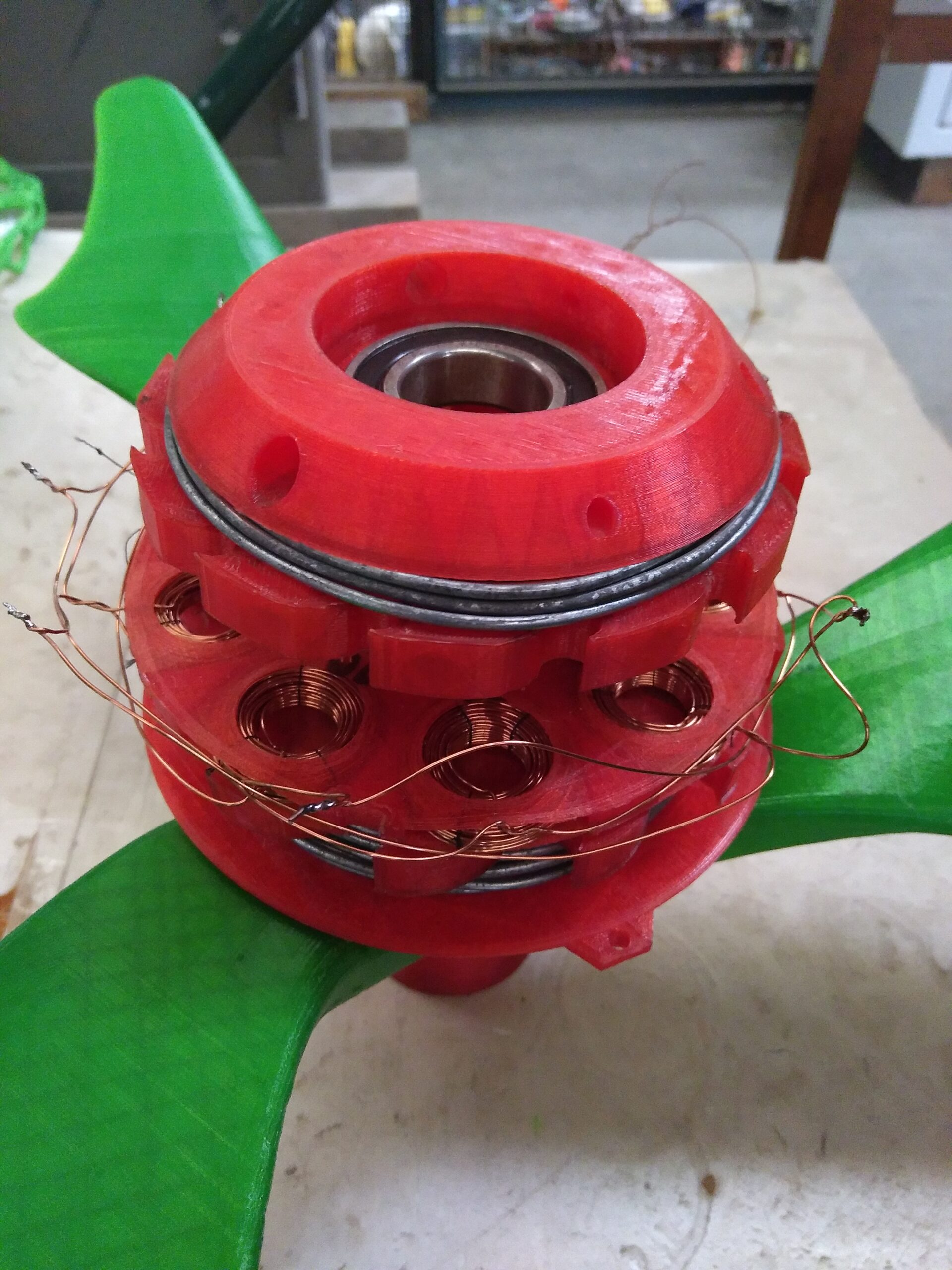

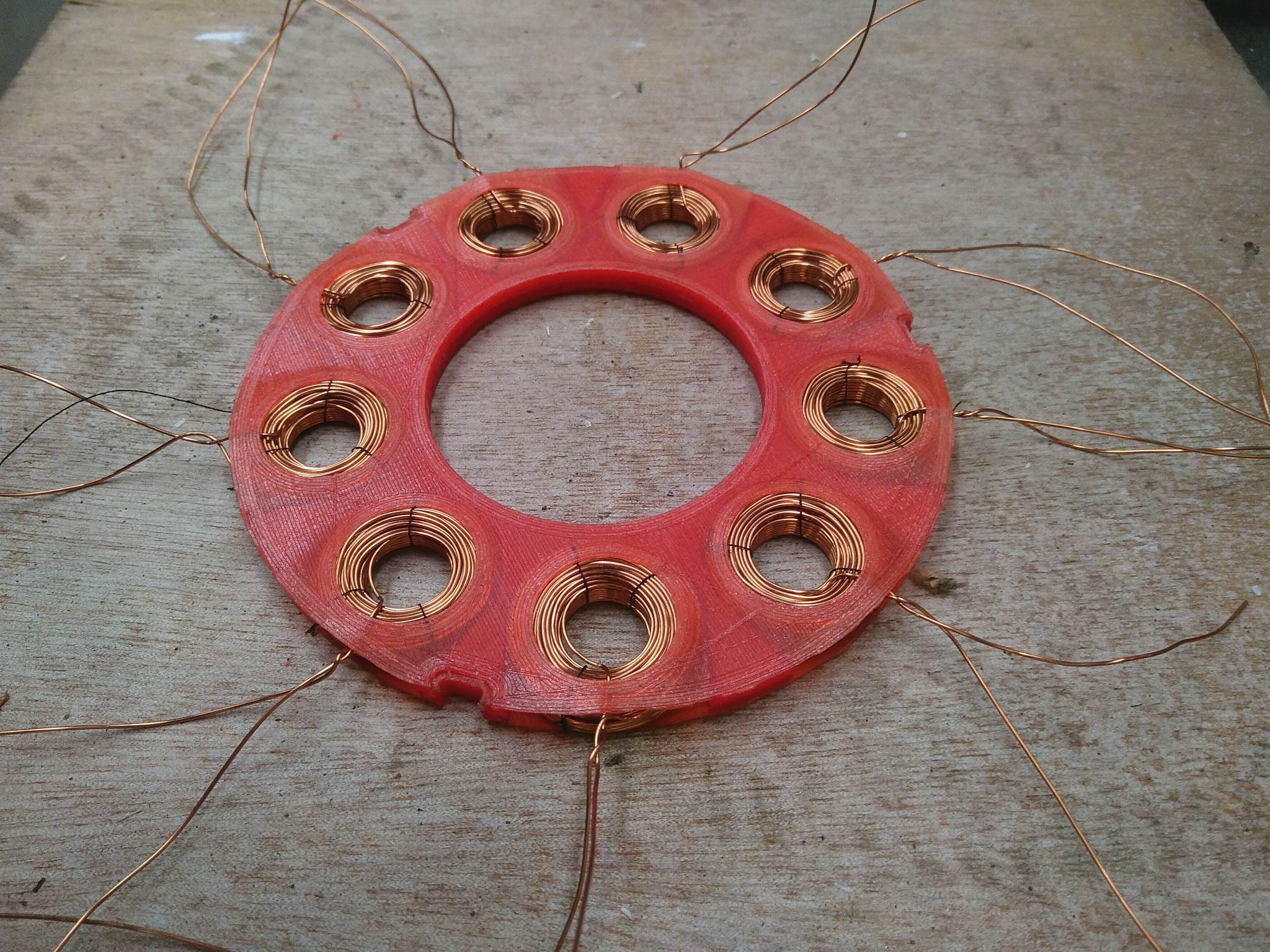

Glue the stator together so they can hold all coils

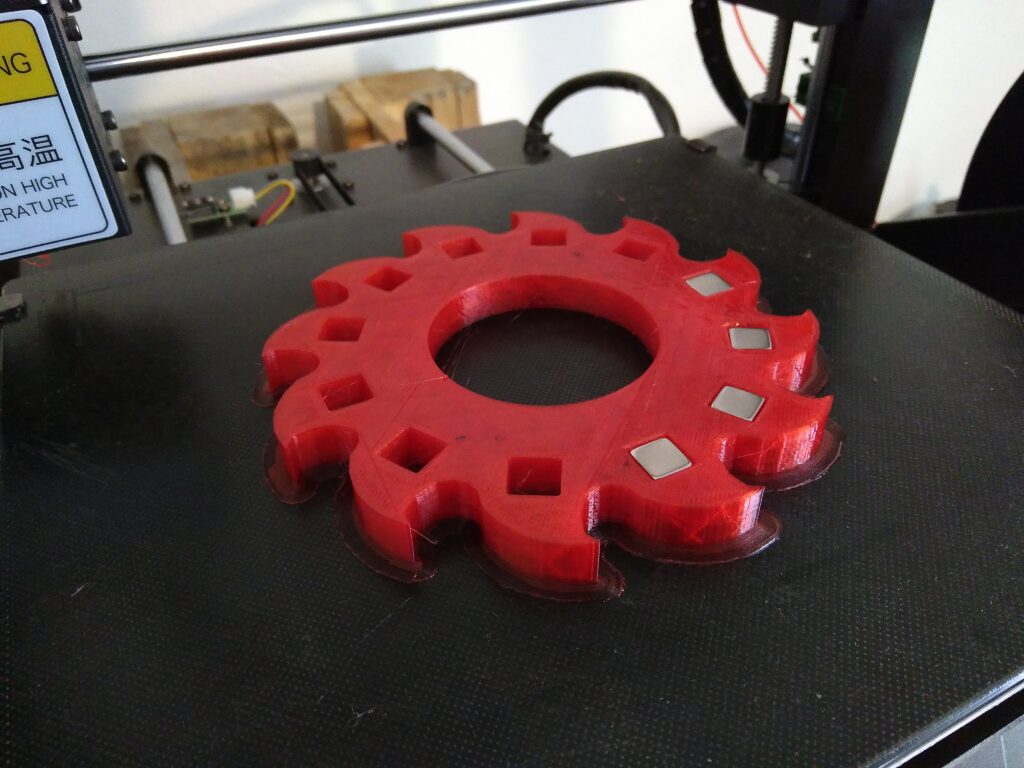

Print the magnet holder and put in the magnets one by one

Test the magnet holder for watertightness

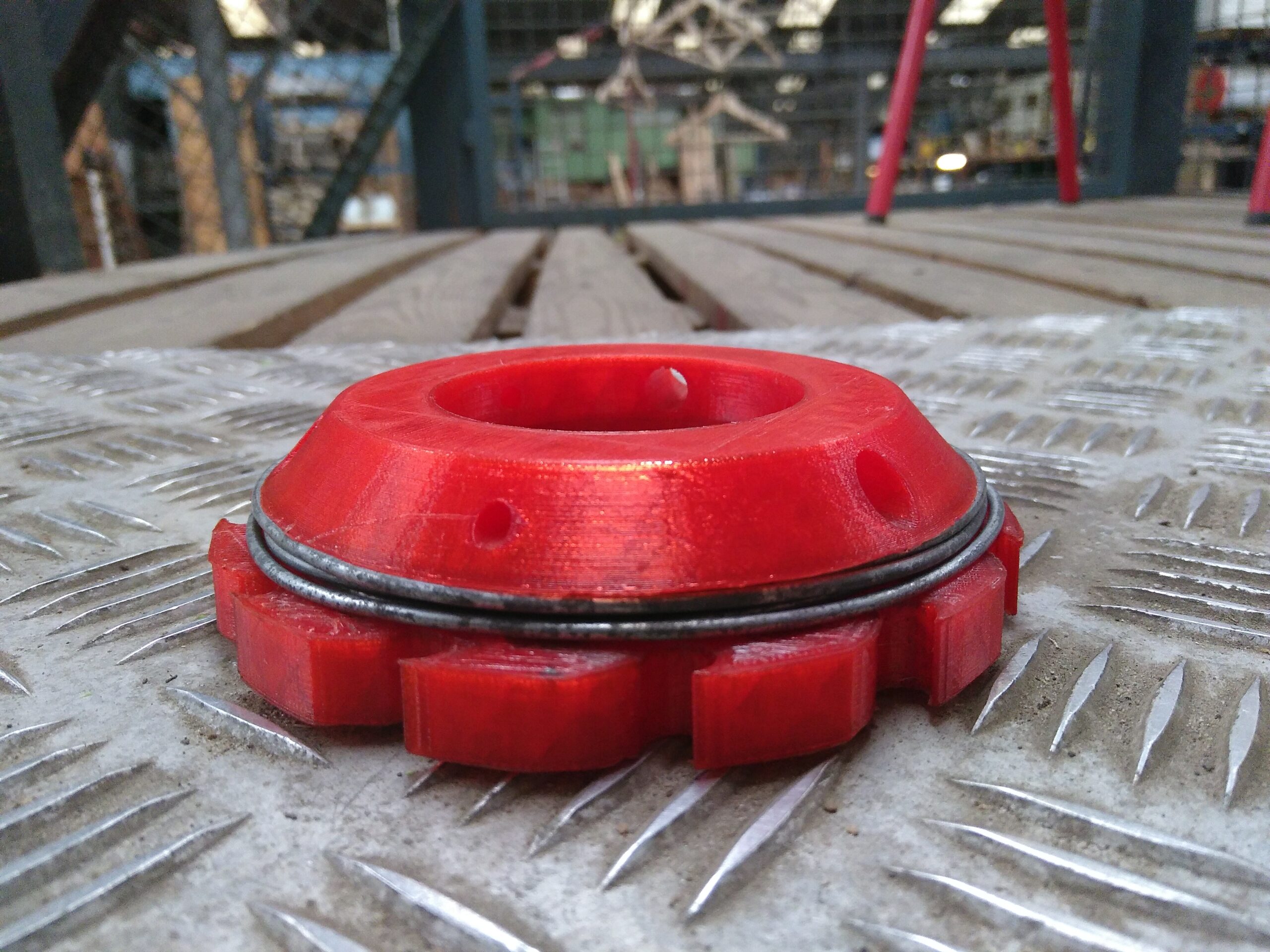

Make sure the fieldlines of the magnets are connected by turning the iron wire like this

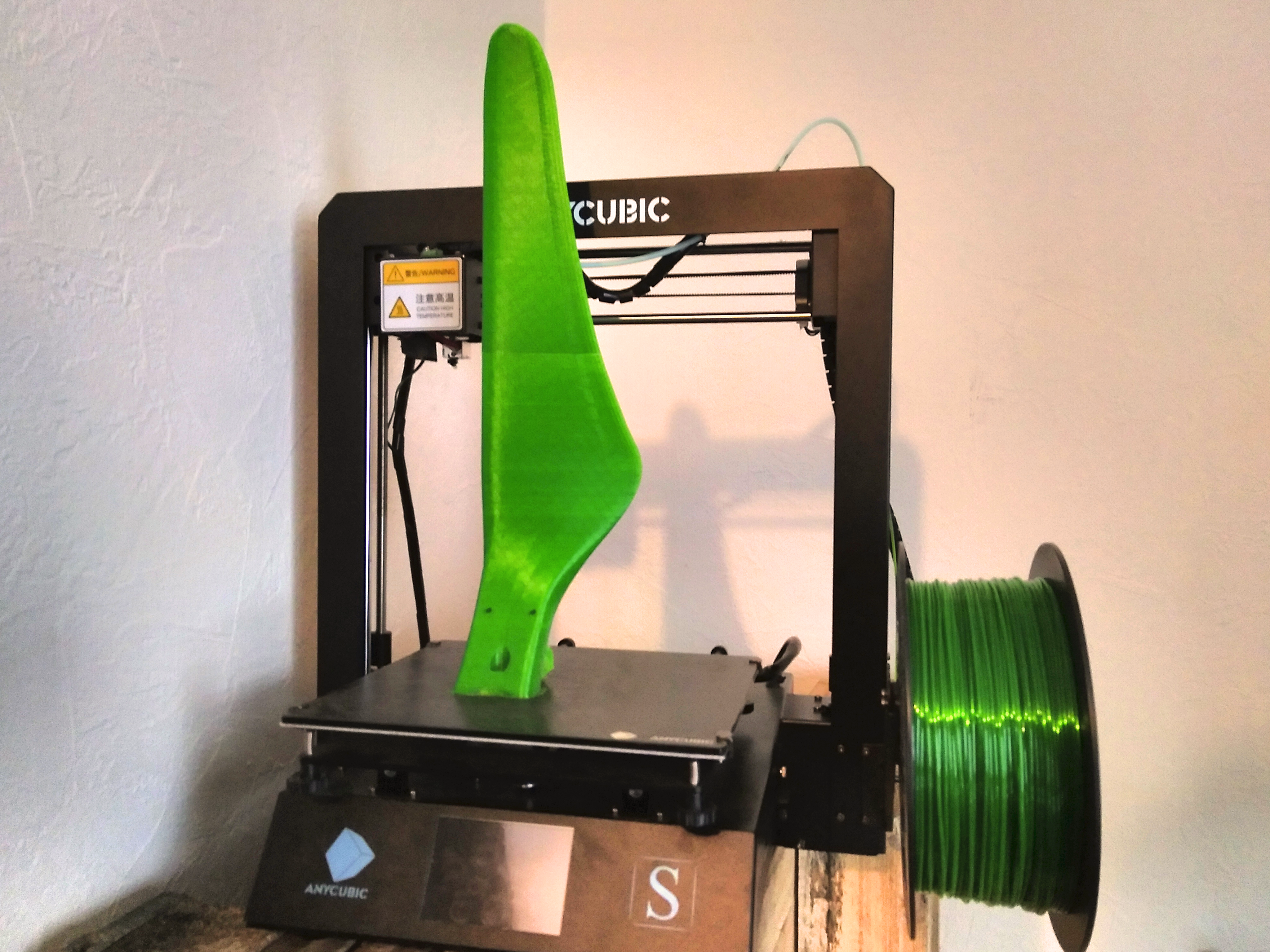

Print both part of the blade and glue together with cyanoacrylate

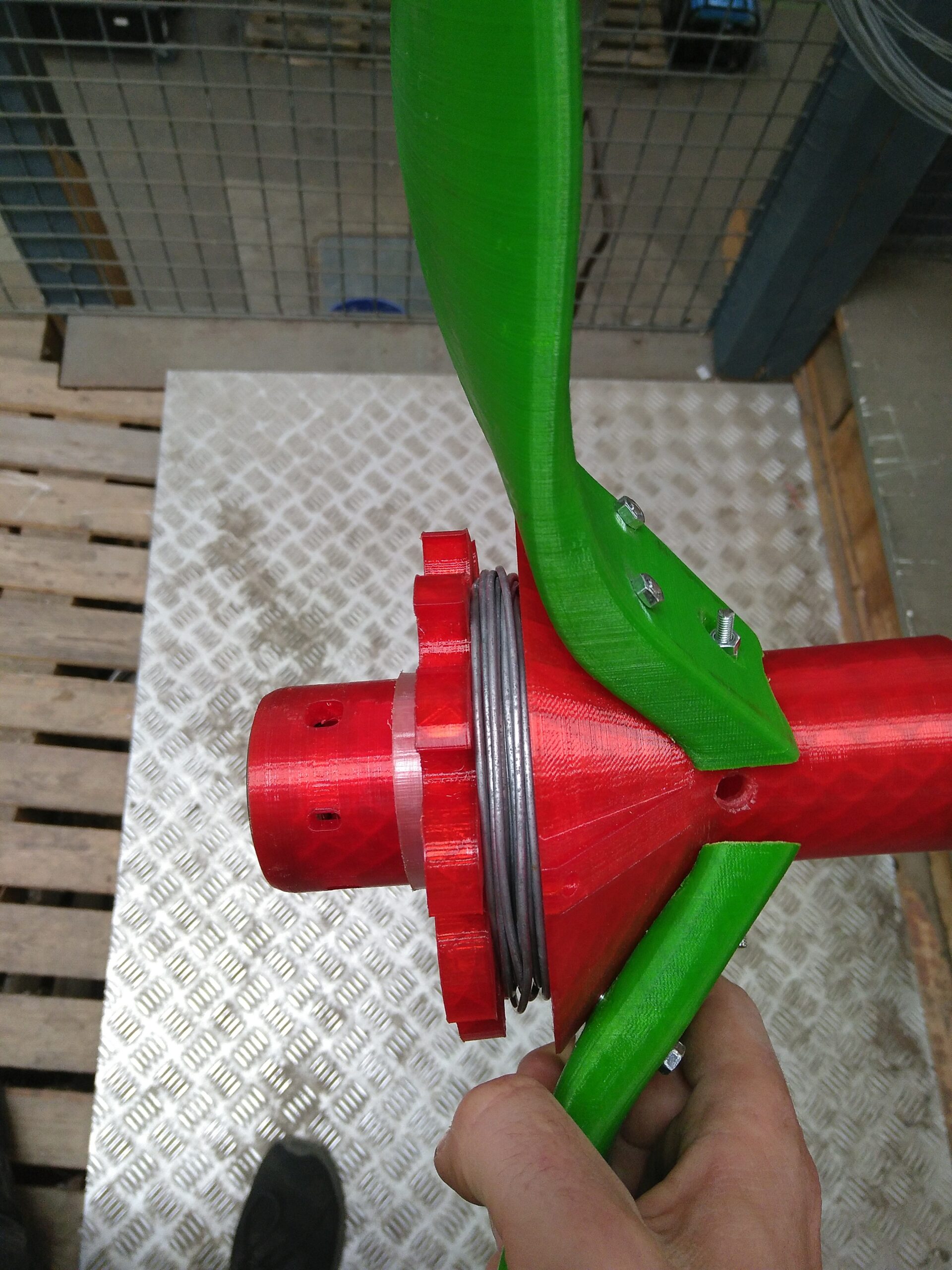

Assemble the axle parts, generator and blades like this with 3mm screws

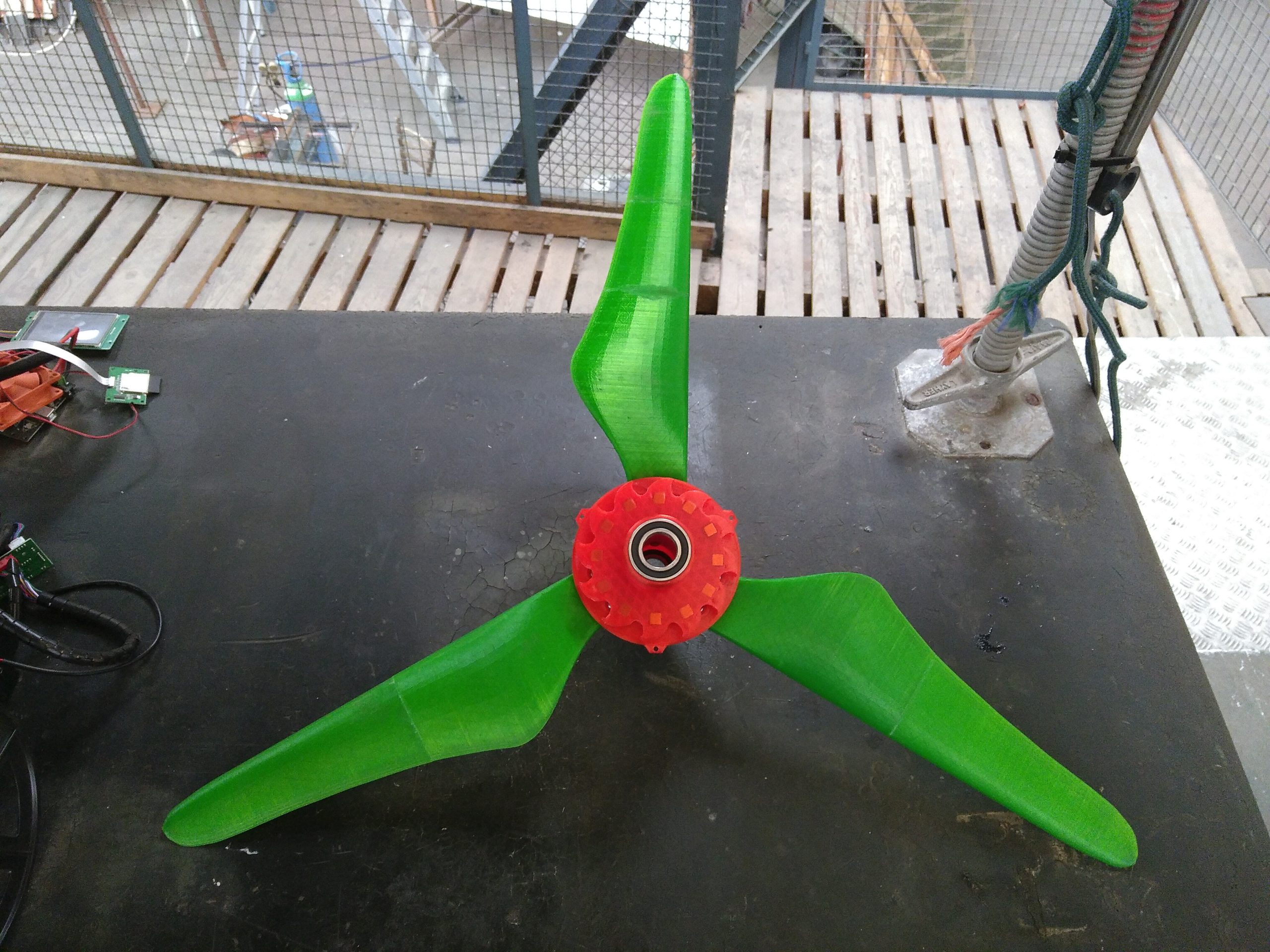

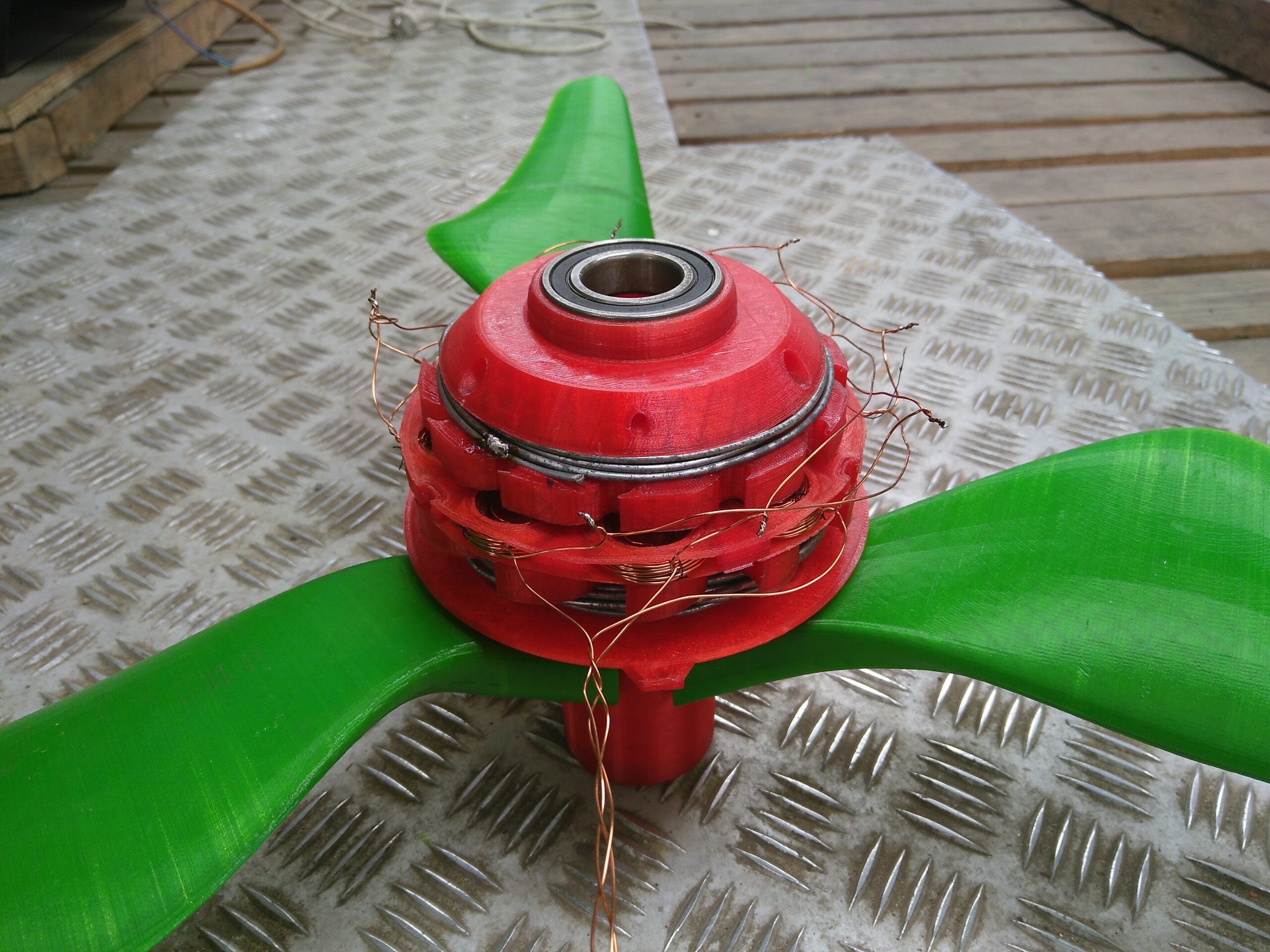

Total should look like this

Connect the coils in 3-phase

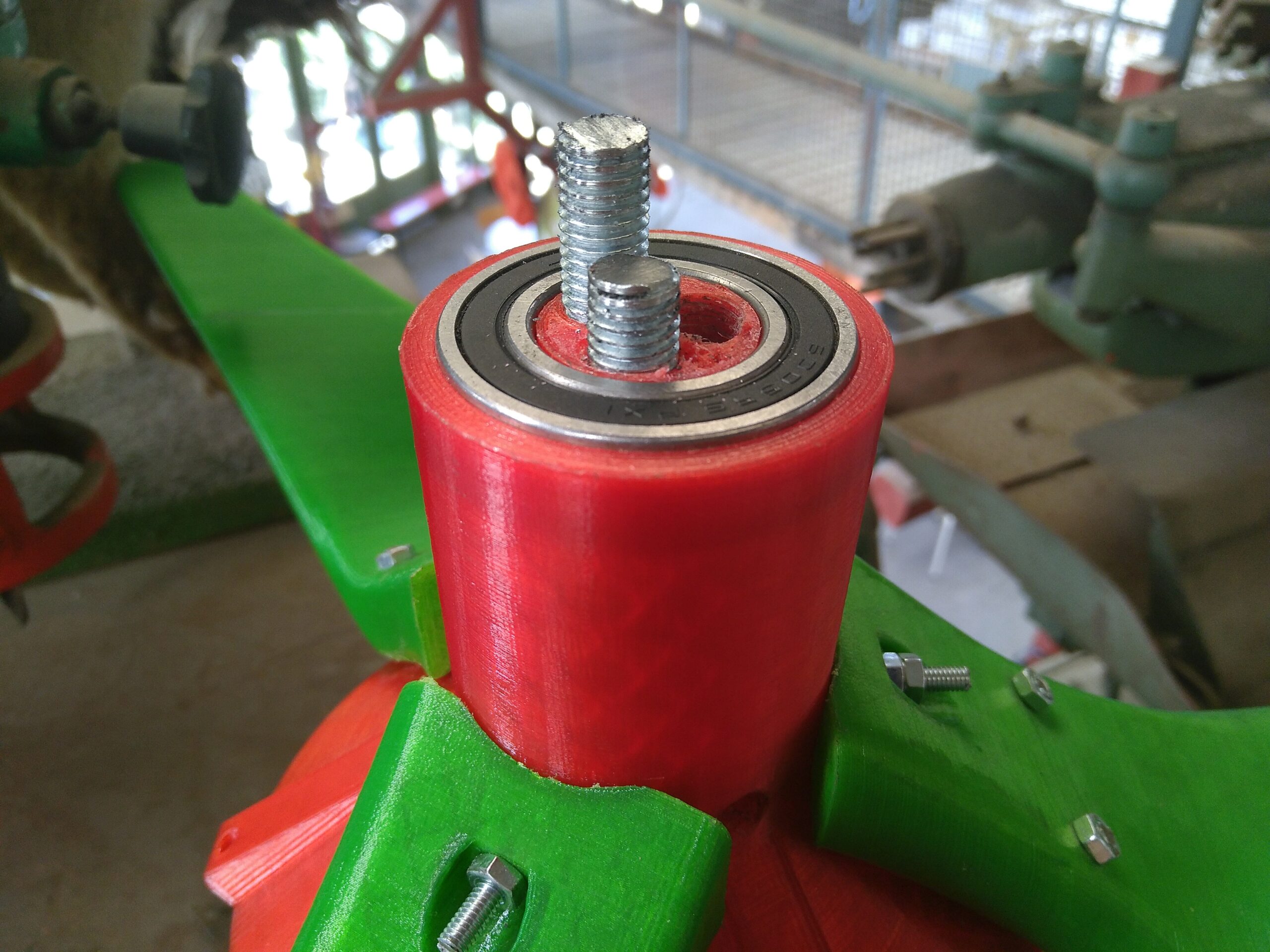

Saw the 1m threaded rod in 3 and screw them

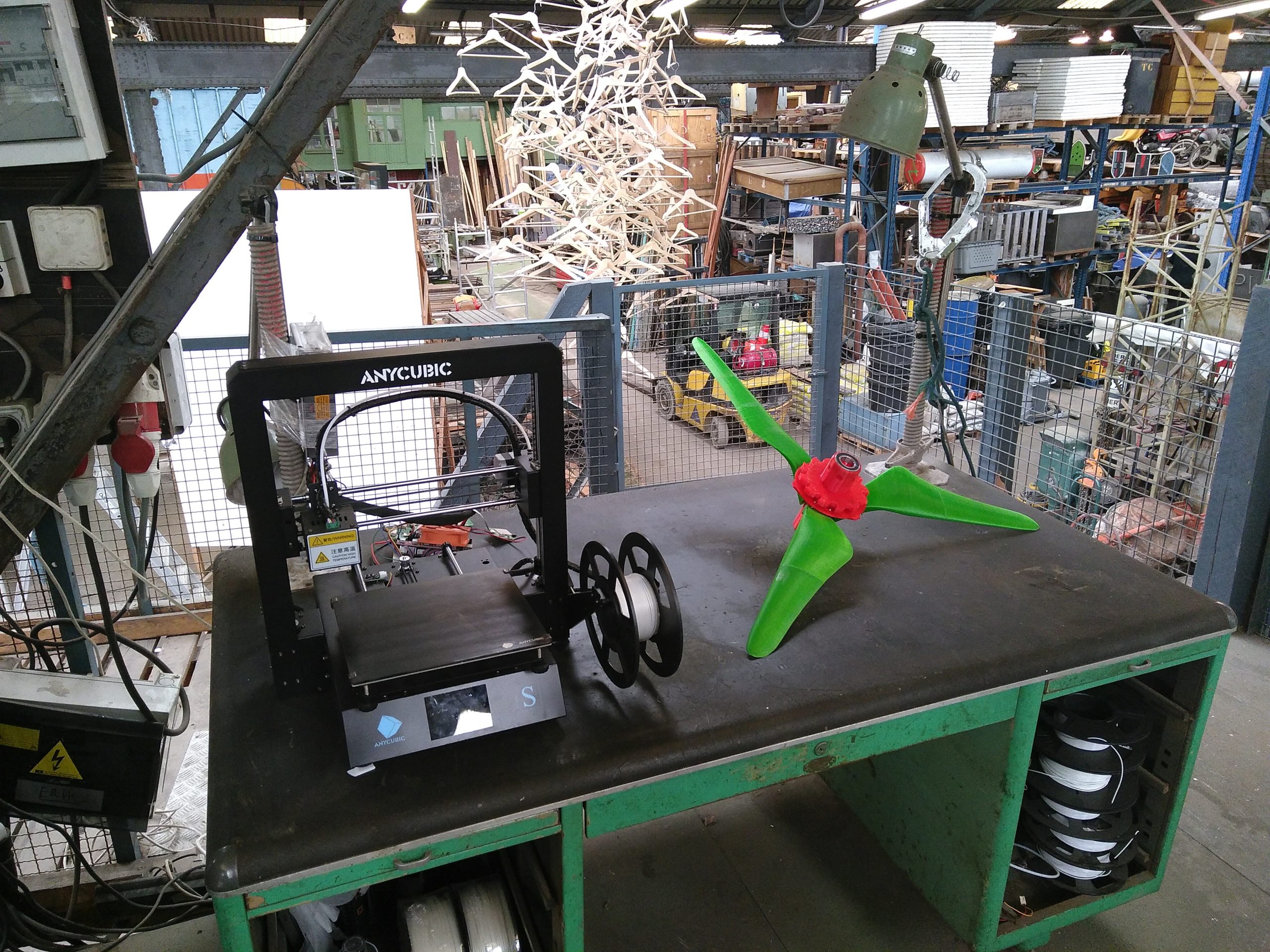

Overview

Overview

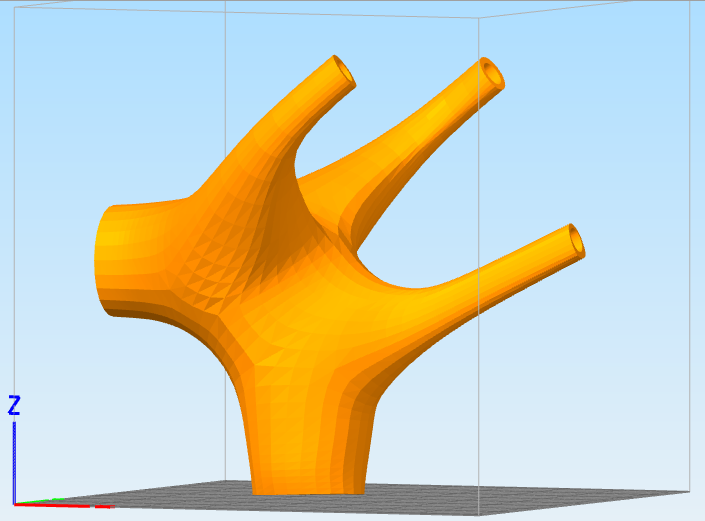

Print the tailpart in this orientation

Overview of the print

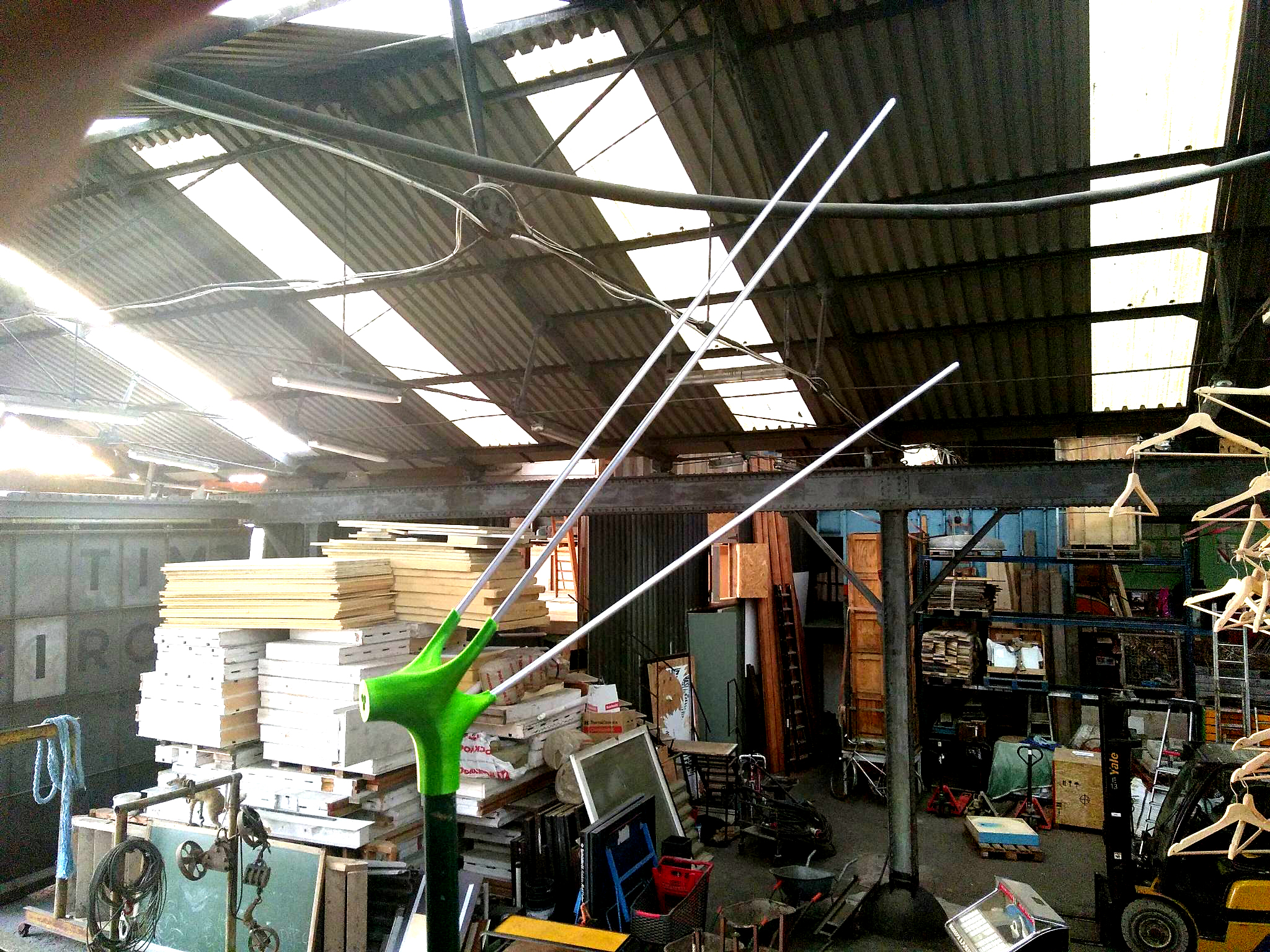

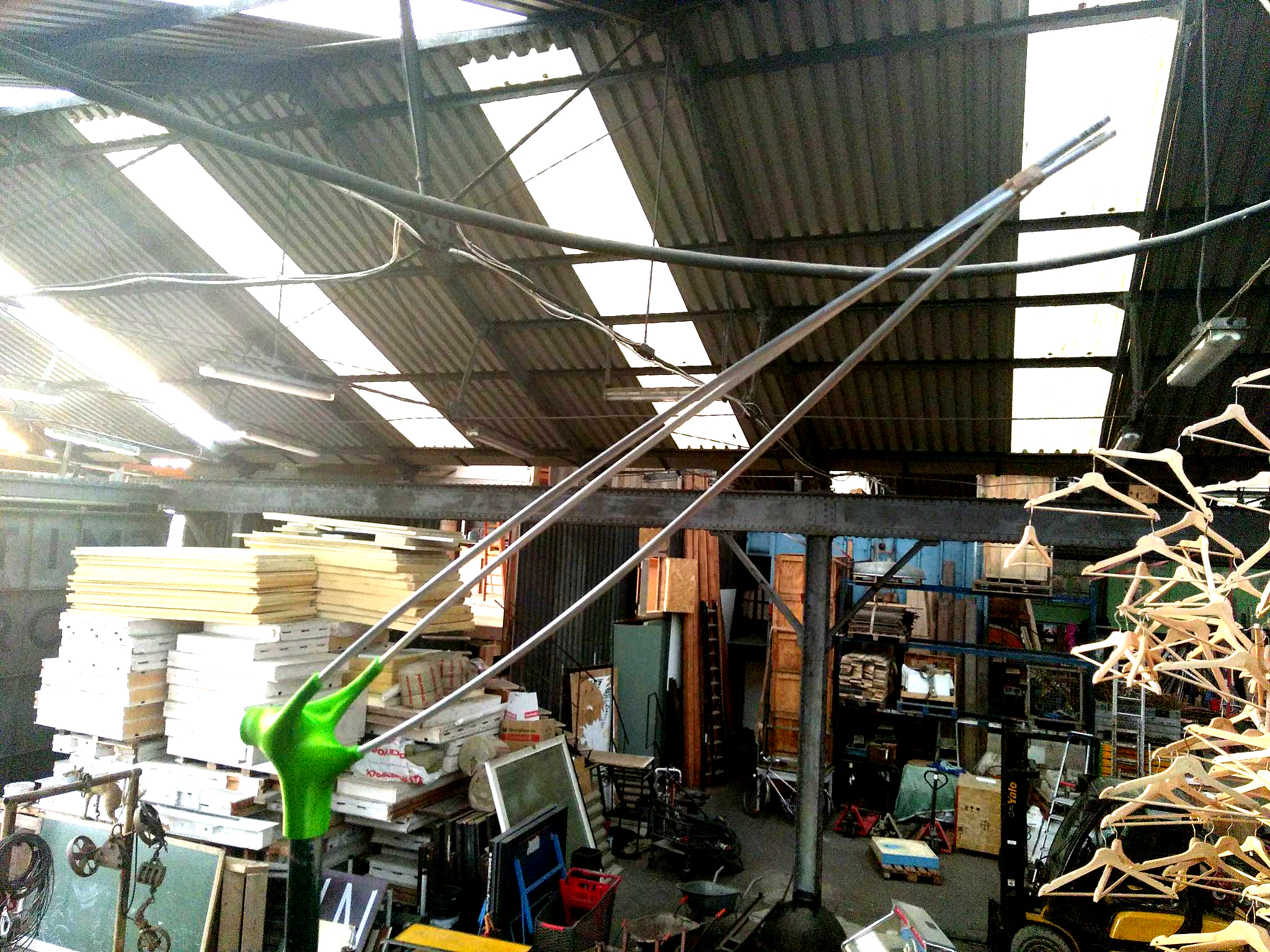

Put in the aluminium bars

Connect together…

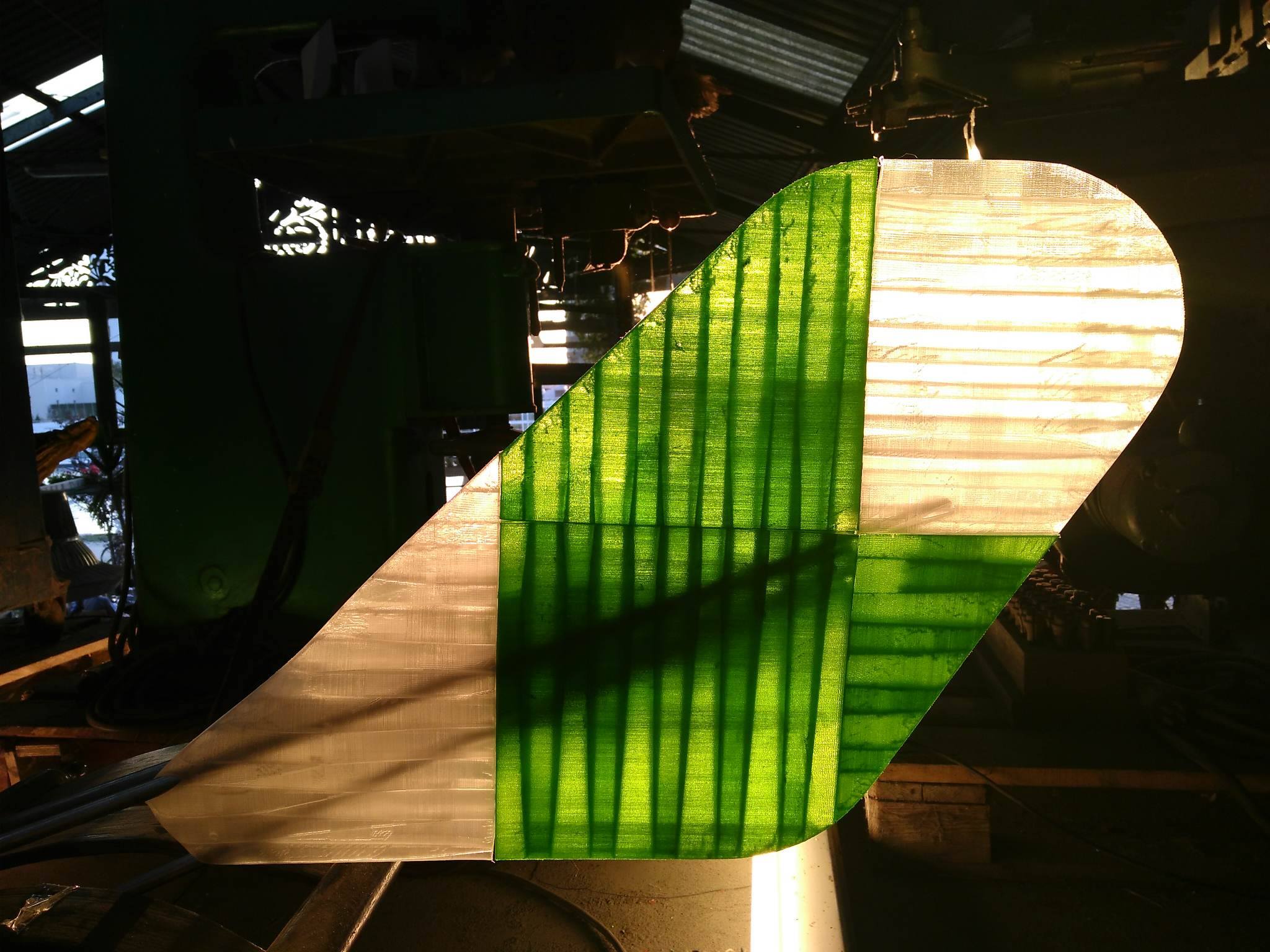

…and shove the tail over them like this

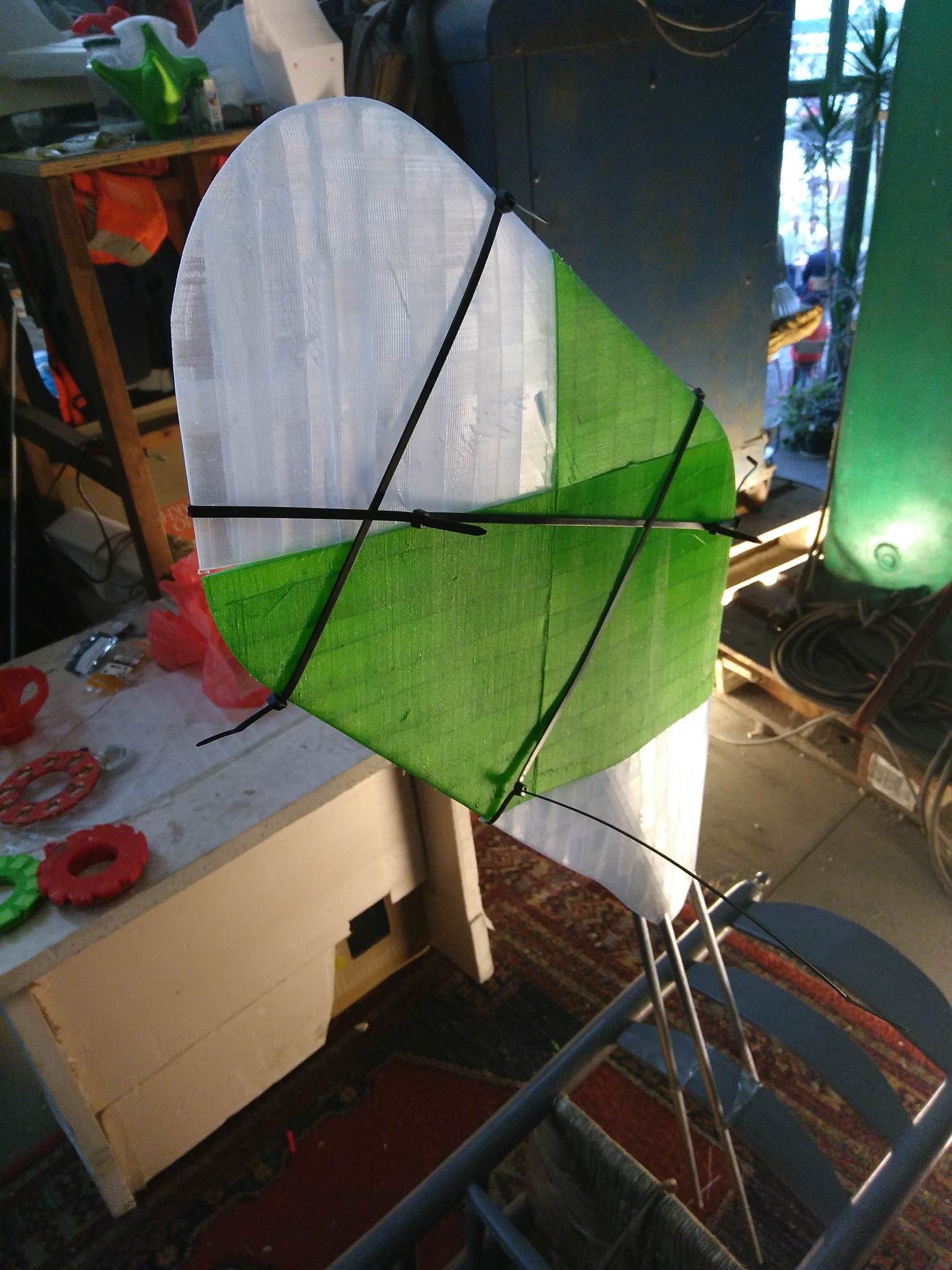

Connect them with tie-wraps while applying extra cyanoacrylate glue

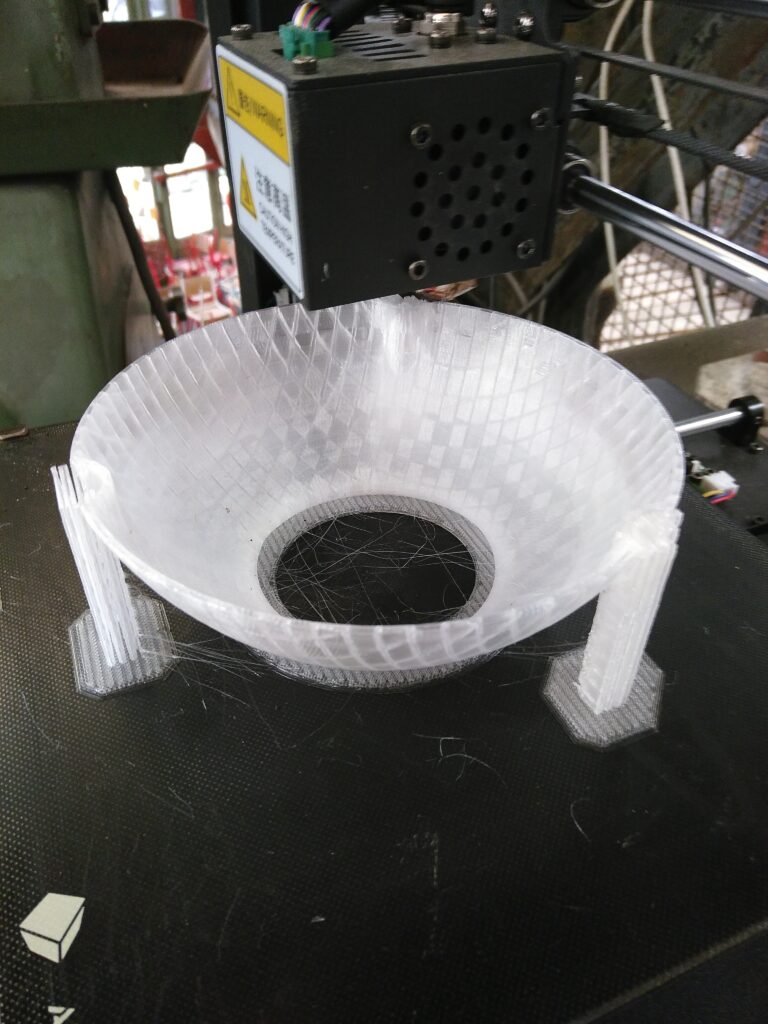

Print the cover pieces.
